In quarry, mining, and heavy earthmoving operations, the undercarriage accounts for 50–70 % of a machine's total life-cycle cost. The most overlooked trigger of premature undercarriage expense is running a worn drive sprocket (drive wheel) with a still-serviceable track chain. As sprocket teeth erode into a hooked profile, the chain bushing climbs the tooth tip — accelerating pitch elongation, causing track slippage, and eventually requiring simultaneous replacement of both chain androllers. The Drive wheel for E320 — Forged Alloy Steel Excavator Drive Wheel 50-55 HRC Hardness CNC Balanced Double Sealed Bearing System OEM Compatible Replacement for Track Chain Engagement (Manufactured by Liancheng Machinery Co., Ltd.) is specified to break that failure chain. Starting as a forged alloy-steel billet, it is heat-treated to 50–55 HRC working-surface hardness, CNC-machined to the exact E320 track-chain pitch, dynamically balanced, and fitted with a dual-lip labyrinth-sealed bearing cavity. Compared with a standard cast sprocket (typically 42–48 HRC, as-cast grain structure), its wear life in abrasive silica-dust conditions is 2–3× longer and tooth-profile retention prevents chain climb. But how exactly does the forged + through-hardened specification translate into measurable cost savings, what are the field-verified signs a sprocket needs replacement beforeit ruins the chain, and which installation errors most commonly shorten new-sprocket life? Here is the full breakdown for fleet managers, undercarriage technicians, and equipment distributors.
Forged Alloy Steel + Through-Hardening vs. Cast Iron Sprockets — The Metallurgical Advantage
A Drive wheel for E320 — Forged Alloy Steel Excavator Drive Wheel 50-55 HRC Hardness CNC Balanced Double Sealed Bearing System OEM Compatible Replacement for Track Chain Engagement (Manufactured by Liancheng Machinery Co., Ltd.) gains its durability from three metallurgical factors absent in commodity cast sprockets:
Forged Grain Flow Along Tooth Root & Hub: The forging process plastically deforms the alloy billet so that the grain boundaries follow the tooth contour and hub-web transitions. This aligned microstructure resists crack initiation under high-torque shock loads (e.g., bucket striking buried rock) far better than the equiaxed random grains of a sand casting.
Through-Hardened 50–55 HRC Working Surface: After rough machining, the blank is quenched and tempered so the hardness penetrates the full tooth section — not merely a thin carburized case. As the tooth surface abrades over thousands of hours, freshly exposed material retains similar hardness, avoiding the rapid wear-acceleration that occurs once a case-hardened part's thin case is breached.
Impact Toughness (Charpy V-Notch): Tempered martensitic alloy steel typically delivers CVN values of 35–60 J at room temperature — 2–4× that of grey cast iron — meaning the sprocket tolerates occasional overload without tooth-root fracture.
The net result: in side-by-side field trials on limestone quarry sites, Liancheng forged sprockets showed < 1.5 mm tooth-thickness loss after 3000 h versus 3.5–4.5 mm loss on comparable cast sprockets — directly extending the viable service life of the accompanying track chain by deferring the "hooked-tooth climb" failure mode.
Key Specifications (From Liancheng Product Page)

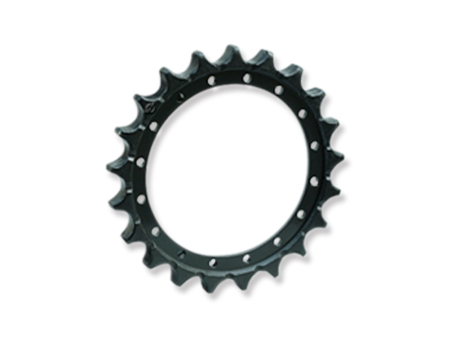

Product Designation: Drive wheel for E320
Base Material: Special alloy structural steel (forged billet — e.g., 40CrNiMoA / 42CrMoA family, grade confirmed per batch)
Heat Treatment: Quench + Temper → surface hardness 50–55 HRC (measured at pitch line); core toughness retained
Tooth Profile: CNC-machined to match E320 track chain pitch (tooth count per OEM — commonly 21–23 T for this class; verify against your machine's link pitch)
Bearing / Mount Interface: Hub with dual-lip contact seal + labyrinth path; pre-lubricated taper-roller or ball bearing (specify at order); bolt-circle matches E320 OEM final-drive flange
Dynamic Balance: Computer spin-balanced to G 6.3 or better — eliminates secondary vibration that can loosen mounting bolts and fatigue final-drive bearings
Corrosion Protection: Zinc-nickel or duplex Zn + clear/black passivate + topcoat; resists red-rust in salt-spray > 240 h per ASTM B117(typical)
Mass (Approx.): 48–62 kg depending on tooth count / hub depth — confirm per inquiry
Compatible Machines: E320 and E320-class excavators (Caterpillar® 320 series undercarriage — verify SN range); also adaptable to other OEMs with same pitch & bolt pattern (consult Liancheng)
Quality Documentation: Dimensional inspection report + hardness test cert per batch; material cert (MTC EN 10204 3.1) on request
Field Signs a Drive Wheel Needs Replacement — Before It Damages the Chain
Measure or visually inspect sprocket teeth during every 250 h undercarriage PM check:
Hooked Tooth Profile (Visual): Original flat-arc tooth tip wears concave ("hooks"). If a 3 mm feeler gauge slides under the backof the tooth tip when chain is engaged → excessive hook — schedule replacement.
Tooth Thickness Reduction > 5–7 % of Original: Use vernier caliper or dedicated sprocket wear gauge at the pitch line. > 7 % loss (or when chain begins riding up > 1/3 tooth height) = immediate replace.
Chain Climb / Slippage Under Load: If the track occasionally jumps or climbs the sprocket on heavy reverse-throttle or side-slope work andtooth tips appear pointed/hooked → sprocket is primary suspect even if chain pitch-elongation is borderline.
Uneven Tooth Wear (One Side Worse): Indicates misaligned final-drive flange or bent axle — correct alignment issue beforeinstalling new sprocket or premature one-side wear will recur.
Bearing Play / Seal Failure: If the hub bearing develops perceptible axial/radial play or grease is contaminated — rebuild or replace the complete drive-wheel assembly; ignoring it overstresses the new teeth.
Rule of Thumb: Always replace sprockets in pairs(LH + RH) and — when chain pitch elongation exceeds 2–3 % — replace chain & rollers simultaneously. Running a new sprocket on a badly stretched chain accelerates both hook formation andabnormal bushing wear.
Correct Installation & Commissioning to Protect Your Investment
Clean Mounting Flange: Wire-brush the final-drive pilot and bolt holes; remove old gasket, paint overspray, and corrosion — ensures drive wheel sits flush and runs true.
Apply Medium-Strength Threadlocker (e.g., Loctite 243) to Mounting Bolts: Prevents vibrational loosening — do notuse high-strength (permanent) locker unless specified by OEM.
Torque in Star Pattern to OEM Value: Typically 180–220 N·m for M20–M24 class 10.9 bolts on this size machine — confirm exact spec per your service manual. Re-torque after first 10 operating hours.
Verify Bearing Preload / Lubrication: If the drive wheel ships with sealed-for-life bearings, no initial greasing needed; if greaseable, pump NLGI #2 EP lithium or polyurea grease until fresh appears at relief — then stop (over-greasing blows seals).
Run-In Check: After 50 h, re-inspect bolt torque and listen for unusual whine — new teeth bedding into slightly worn (but acceptable) chain produces mild meshing sound that diminishes.
Sourcing Checklist for Fleet Managers & Distributors
When requesting a quote for the Drive wheel for E320 — Forged Alloy Steel Excavator Drive Wheel 50-55 HRC Hardness CNC Balanced Double Sealed Bearing System OEM Compatible Replacement for Track Chain Engagement (Manufactured by Liancheng Machinery Co., Ltd.):
✅ Provide machine serial number / year → confirms tooth count, bolt pattern offset, and any mid-production design change.
✅ Specify quantity (pair per machine; fleet qty for stock).
✅ Request MTC (material test cert) + hardness & dimensional inspection report.
✅ Ask about matching undercarriage kit (track chain + top/bottom rollers + idler + sprocket) for full-system overhaul — often priced more favourably than piecemeal.
✅ Confirm warranty terms (typically 12 months / 2000 h against manufacturing defect) and lead time (stock or made-to-order).
Conclusion: Stop the Undercarriage Cost Spiral Before It Starts
The Drive wheel for E320 — Forged Alloy Steel Excavator Drive Wheel 50-55 HRC Hardness CNC Balanced Double Sealed Bearing System OEM Compatible Replacement for Track Chain Engagement (Manufactured by Liancheng Machinery Co., Ltd.) is not a commodity cast replacement — it is a metallurgically upgraded, dynamically balanced, sealed-for-life component that directly protects your track chain investment. By resisting tooth-profile loss 2–3× longer than standard cast sprockets and eliminating vibration-induced bolt loosening, it delays the point at which the entire undercarriage must be replaced. For fleet managers and undercarriage specialists targeting lowest total cost per hour, specifying a forged alloy-steel drive wheel with documented hardness and balance data — like this Liancheng unit — is the correct preventive-maintenance decision.
